Navigation¶
Structure¶
PyQt Fluent Widgets provides a side navigation class NavigationInterface
. You can use it with QStackWidget
and put them in QHBoxLayout
. Examples are available at navigation2.

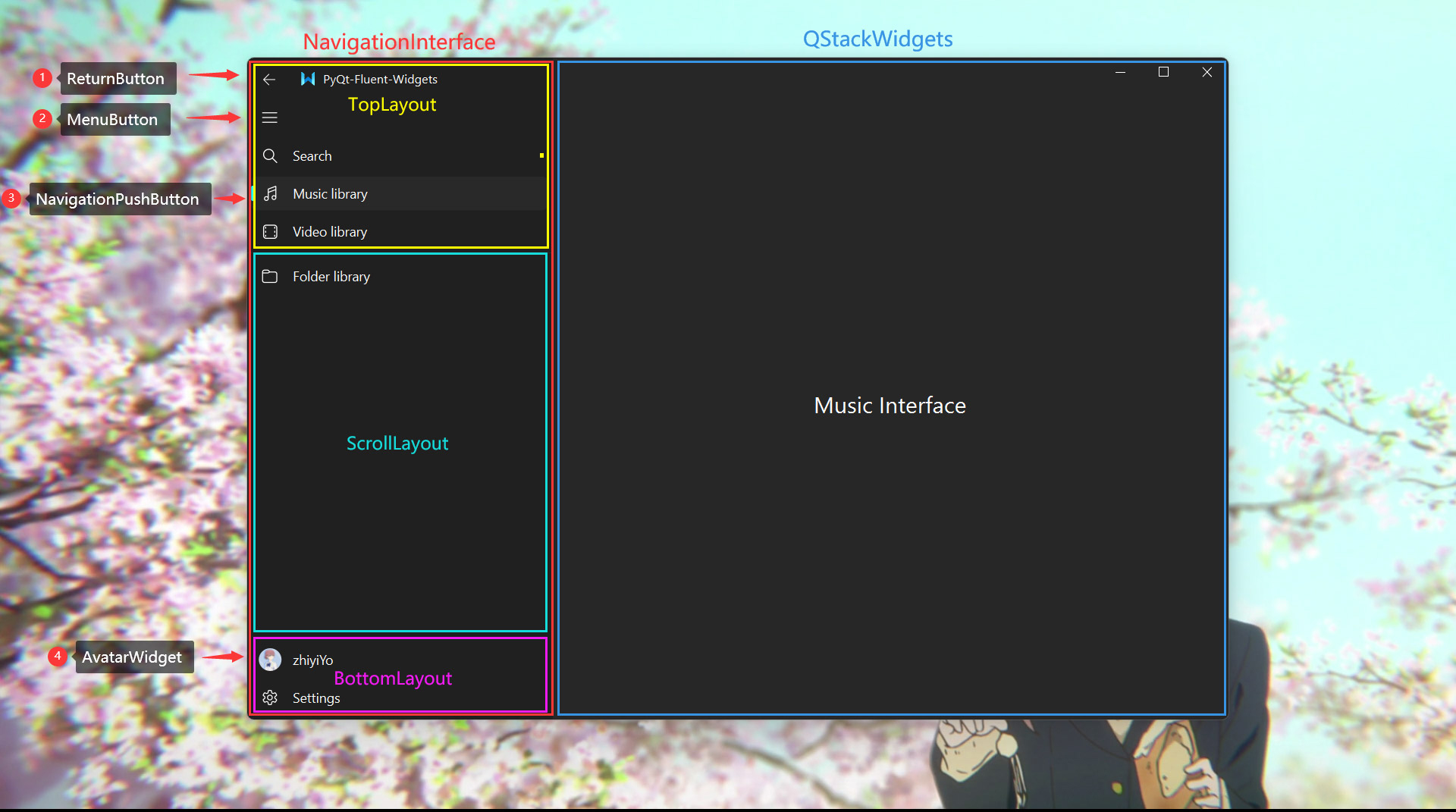

NavigationInterface
contains NavigationPanel
which is used to place navigation menu items. All navigation menu items should inherit from NavigationWidget
and you can add them to the panel by calling NavigationInterface.addWidget()
or NavigationPanel.addWidget()
. PyQt-Fluent-Widgets implements subclass NavigationPushButton
and provides a convenient method NavigationInterface.addItem()
to add it to the panel.
If you want to customize a navigation menu item, you should inherit the NavigationWidget
and rewrite its paintEvent()
and setCompacted()
(optional). Here an example shows how to create an avatar item.
from qfluentwidgets import NavigationWidget
class AvatarWidget(NavigationWidget):
""" Avatar widget """
def __init__(self, parent=None):
super().__init__(isSelectable=False, parent=parent)
self.avatar = QImage('resource/shoko.png').scaled(
24, 24, Qt.KeepAspectRatio, Qt.SmoothTransformation)
def paintEvent(self, e):
painter = QPainter(self)
painter.setRenderHints(
QPainter.SmoothPixmapTransform | QPainter.Antialiasing)
painter.setPen(Qt.NoPen)
if self.isPressed:
painter.setOpacity(0.7)
# draw background
if self.isEnter:
c = 255 if isDarkTheme() else 0
painter.setBrush(QColor(c, c, c, 10))
painter.drawRoundedRect(self.rect(), 5, 5)
# draw avatar
painter.setBrush(QBrush(self.avatar))
painter.translate(8, 6)
painter.drawEllipse(0, 0, 24, 24)
painter.translate(-8, -6)
if not self.isCompacted:
painter.setPen(Qt.white if isDarkTheme() else Qt.black)
font = QFont('Segoe UI')
font.setPixelSize(14)
painter.setFont(font)
painter.drawText(QRect(44, 0, 255, 36), Qt.AlignVCenter, 'zhiyiYo')
Now let’s take a look at the parameters required for the addWidget()
method:
def addWidget(
self,
routeKey: str,
widget: NavigationWidget,
onClick=None,
position=NavigationItemPosition.TOP,
tooltip: str = None,
parentRouteKey: str = None
)
As you can see, this method requires four parameters:
routeKey
: A unique name for thewidget
to be added. You can consider the sub interface in theQStackWidget
as a web page, and therouteKey
is the url of the web page. When you switch between sub interfaces,NavigationPanel
will add arouteKey
to the navigation history. When you click the return button, therouteKey
at the top of the navigation history will pop up. If there are otherrouteKeys
in the history at this time, PyQt-Fluent-Widgets will switch to the corresponding sub interface corresponding to current toprouteKey
. Otherwise, it will switch to the sub interface corresponding todefaultRouteKey
, so you should callNavigationInterface.setDefaultRouteKey()
before running app.widget
: The widget to be added to panel.onClick
: Slot function connected to the widget’sclicked
signal. If you want to switch sub interfaces when clickingwidget
, it is recommended to write this slot function aslambda: self.stackWidget.setCurrentWidget(self.xxxInterface)
.position
: Where to add thewidget
to the panel. The following values are available:NavigationItemPosition.TOP
: addwidget
to the top layout of panel.NavigationItemPosition.SCROLL
: addwidget
to the scroll layout of panel. You can scroll the widgets in scroll layout when there are too many menu items.NavigationItemPosition.BOTTOM
: addwidget
to the bottom layout of panel.
tooltip
: The tooltip of menu item.parentRouteKey
: The route key of parent menu item, the widget of parent item must be the instance ofNavigationTreeWidgetBase
Display mode¶
The navigation panel has four display modes:
NavigationDisplayMode.EXPAND

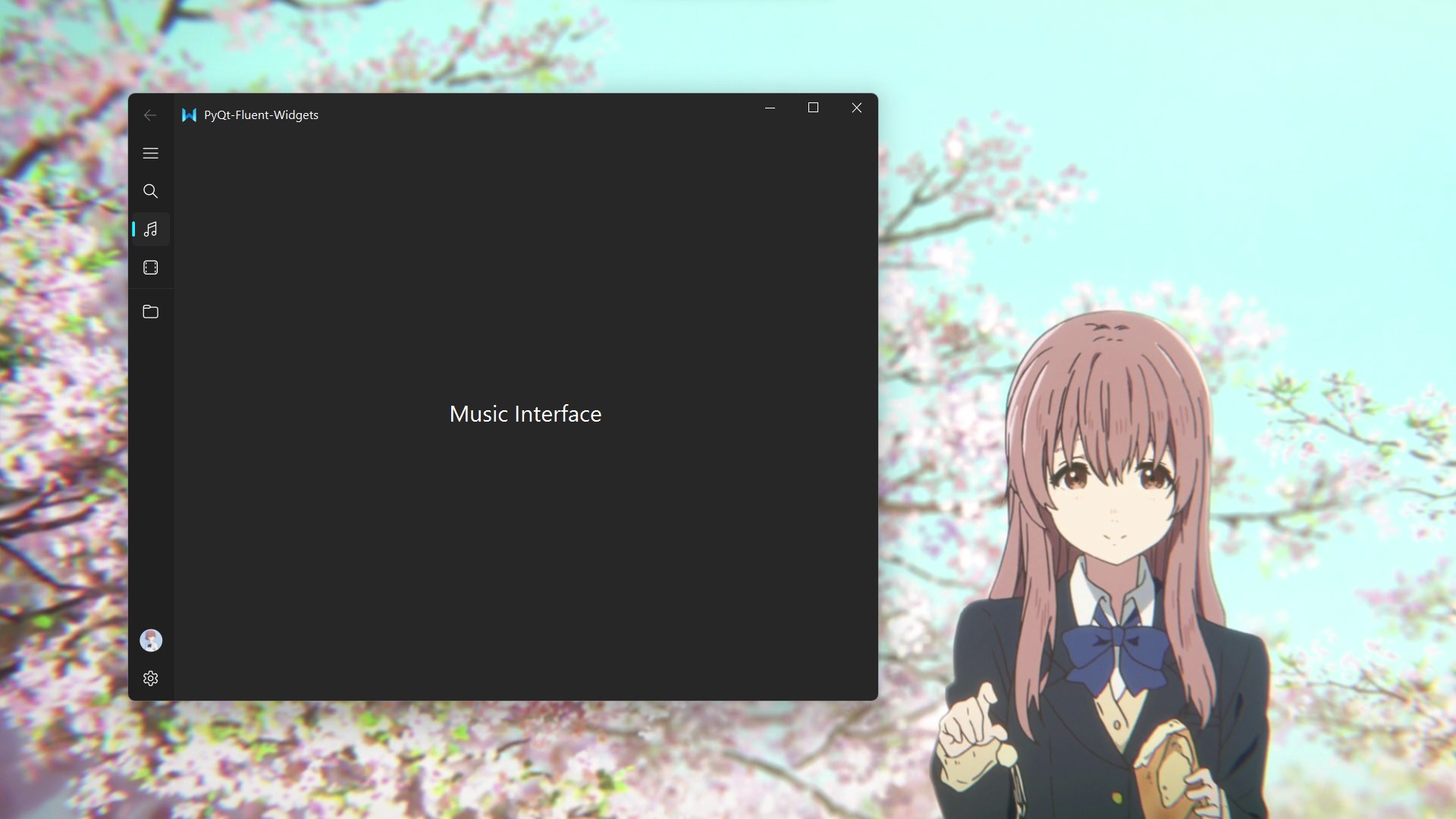

: An expanded left pane on large window widths (1008px or greater).NavigationDisplayMode.COMPACT
: A left, icon-only, nav panel on medium window widths (1007px or less).NavigationDisplayMode.MENU

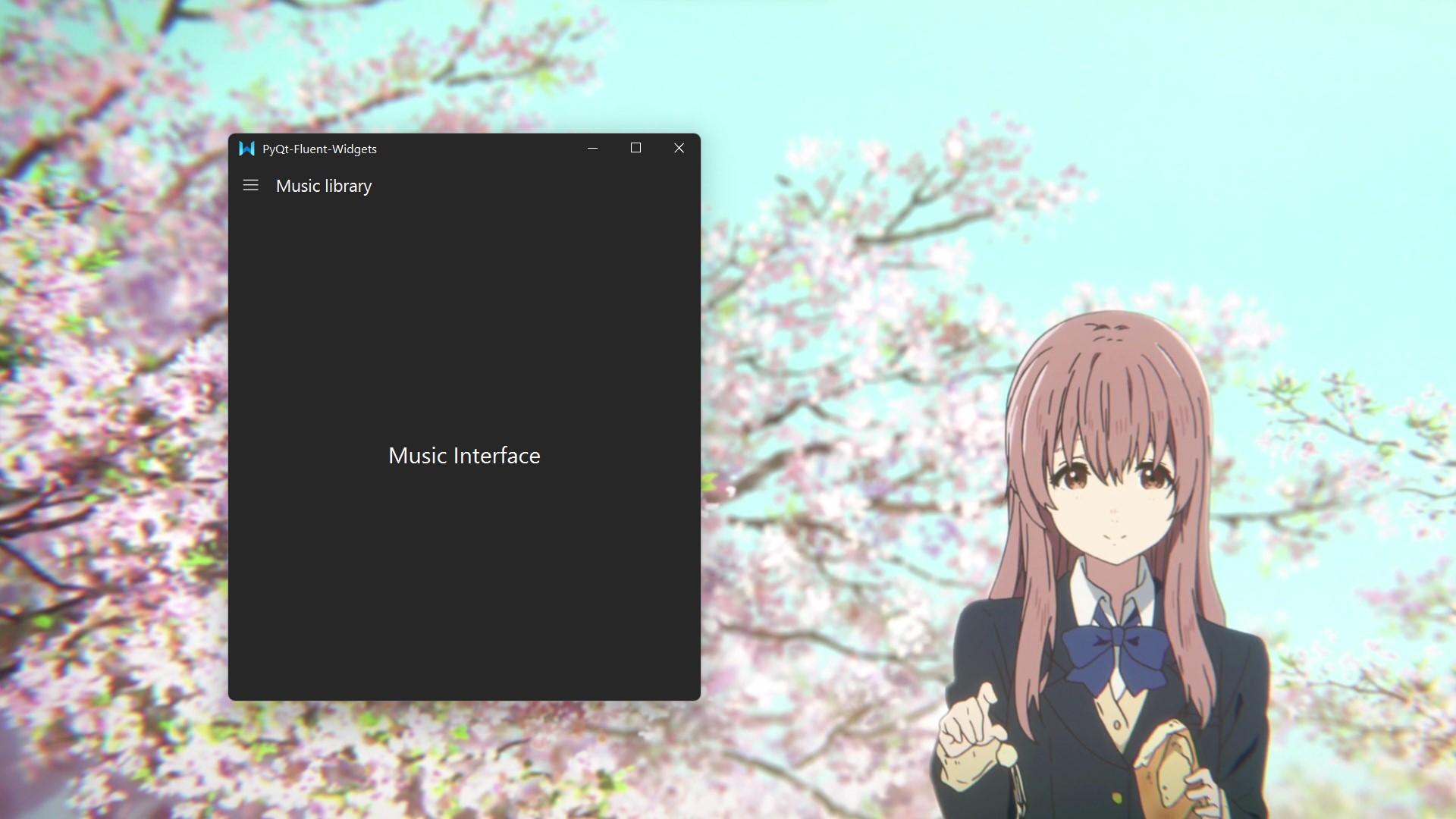

: An expanded left menu (1007px or less).NavigationDisplayMode.MINIMAL
: Only a menu button on small window widths (you should add and manage the menu button to main window by yourself like navigation3 does).
If you call NavigationInterface.setExpandWidth()
, the large window width (1008px) will change accordingly.
More examples¶
Here is an another style of navigation interface, and its corresponding example program is available at navigation.
Minimal display mode navigation interface is available at navigation3.
